技术方案-AWS-AWS GitHub + Codepipline + ECR + ECS + Load Balancer + EC2 + RDS + Redis project setup workflow for follow paris

· 7 min read

IAM​

  • Create a IAM user
  • Login as new IAM user
  • Generate password and access_key

Region​

  • Paris (eu-west-3)

GitHub + Codepipline + ECR + ECS + Load Balancer + EC2 + RDS + ElastiCache

Request Public certificate for HTTPS​

*.api.followparis.com
*.stg.api.followparis.com
*.prod.api.followparis.com

Add CNAME records of domain in Route 53​

Set DNS settings -> OK

Create ECR​

No work with the build from Mac M1 (arm)

Create repository​

name: follow-paris-backend-node-js-prod-ecr

Comands​

Check AWS CLI

aws ecr get-login-password --region eu-west-3 | docker login --username AWS --password-stdin 125894042607.dkr.ecr.eu-west-3.amazonaws.com

Build docker image

docker build -t follow-paris-backend-node-js .
docker tag follow-paris-backend-node-js:latest 125894042607.dkr.ecr.eu-west-3.amazonaws.com/follow-paris-backend-node-js:latest

Push docker image

docker push 125894042607.dkr.ecr.eu-west-3.amazonaws.com/follow-paris-backend-node-js:latest

ECS + Load Balancer + EC2​

Create EC2 key pair​

name of key: follow-paris-key-v3

Create Security for Load balancer​

name: follow-paris-backend-ALB-security-group

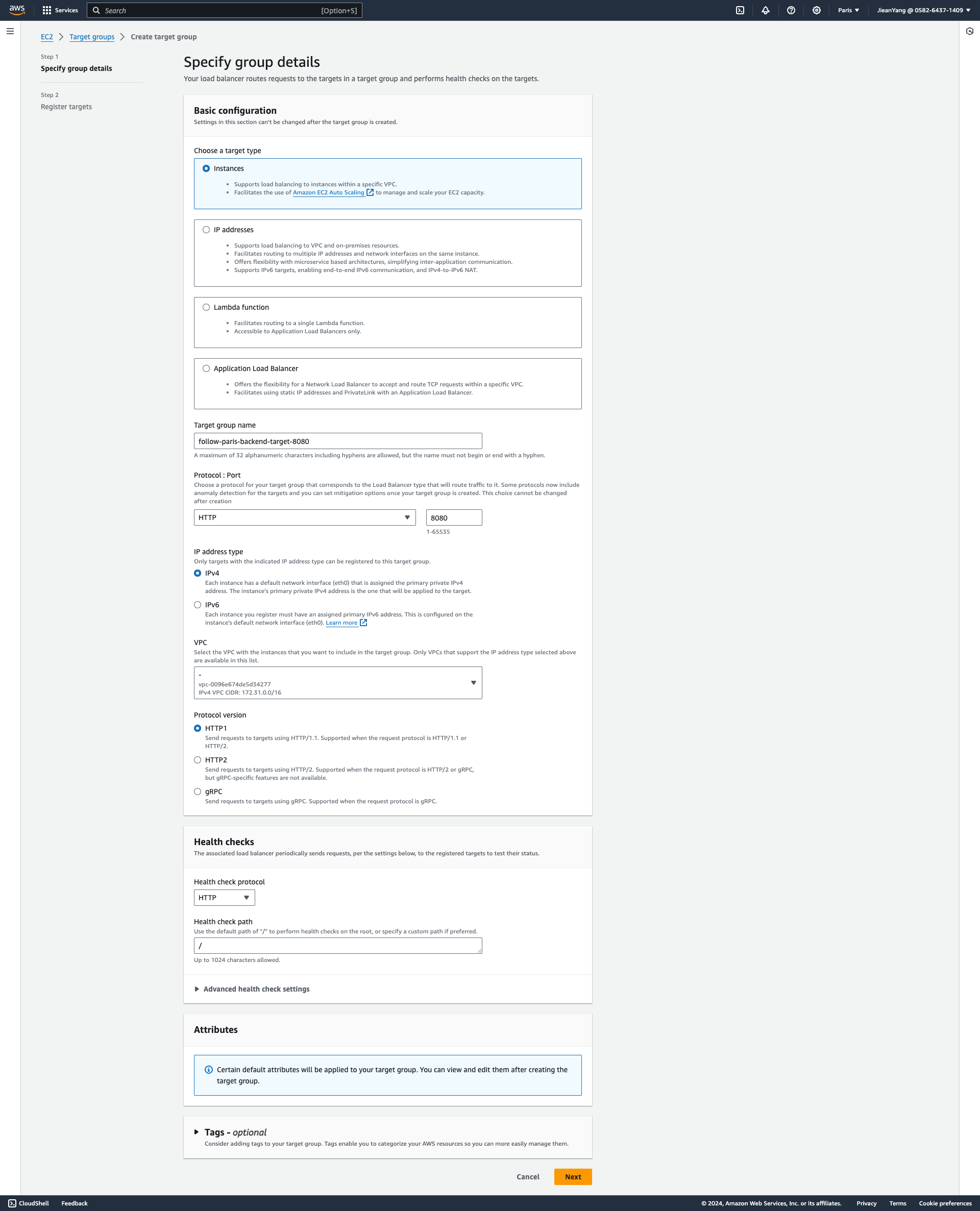

Create Target Group then register one nstance​

name: follow-paris-backend-target-8080

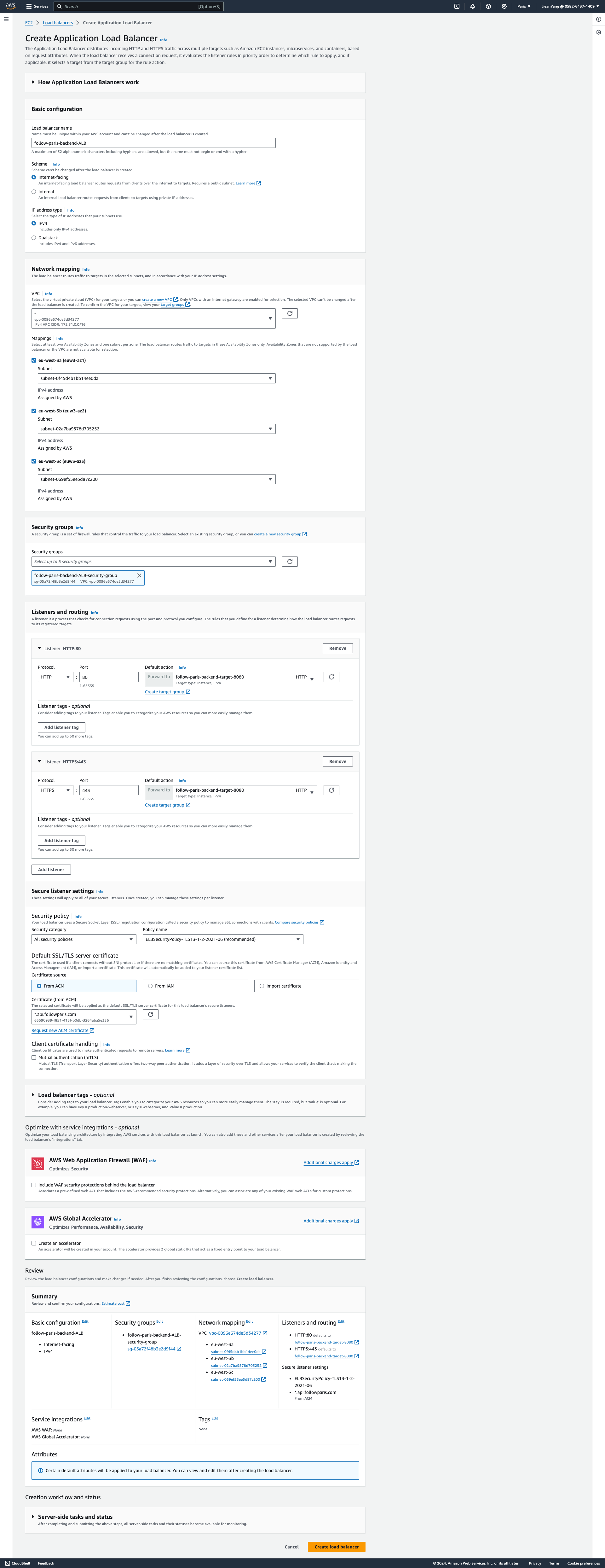

Create Load balancer​

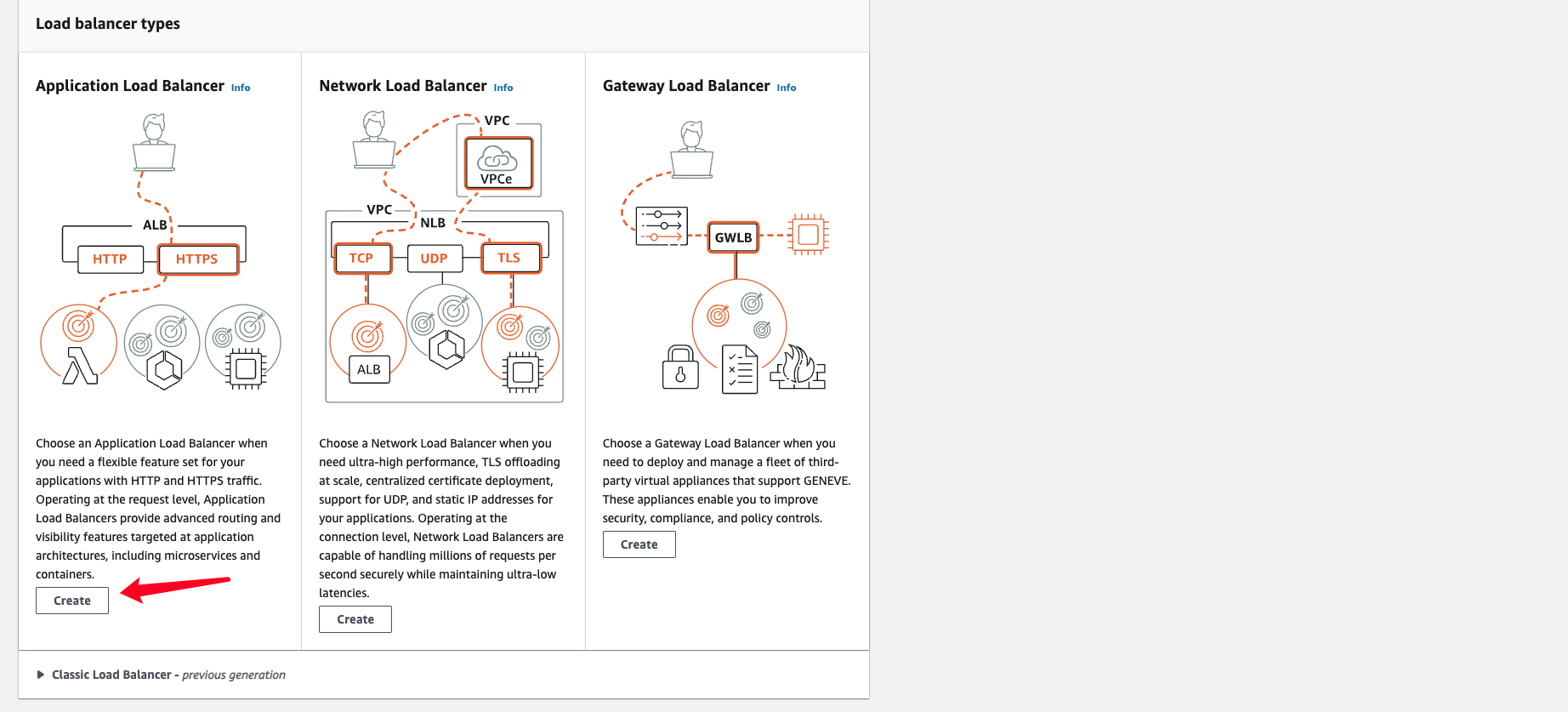

Select “Application Load Balancer”

name: follow-paris-backend-ALB

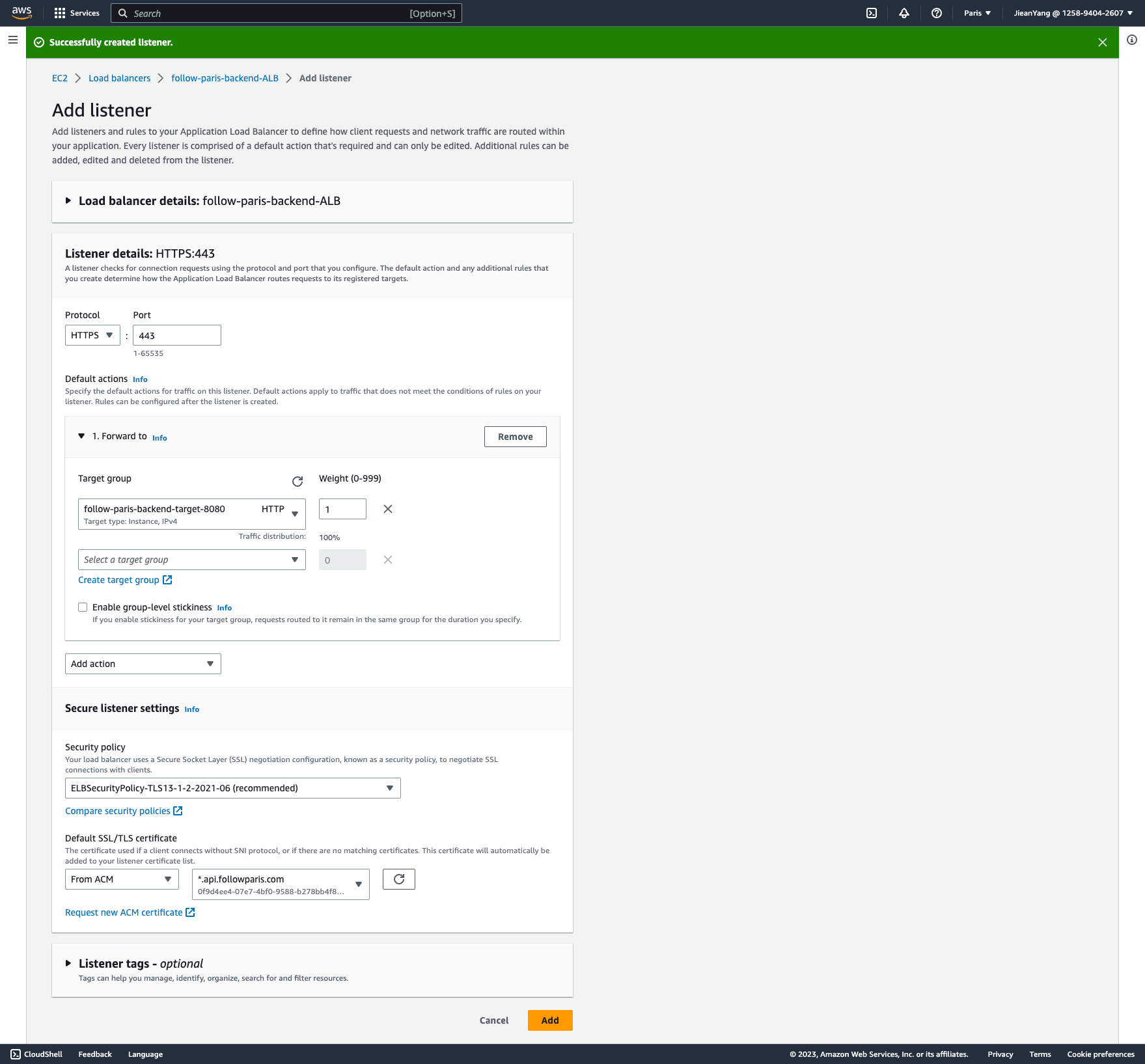

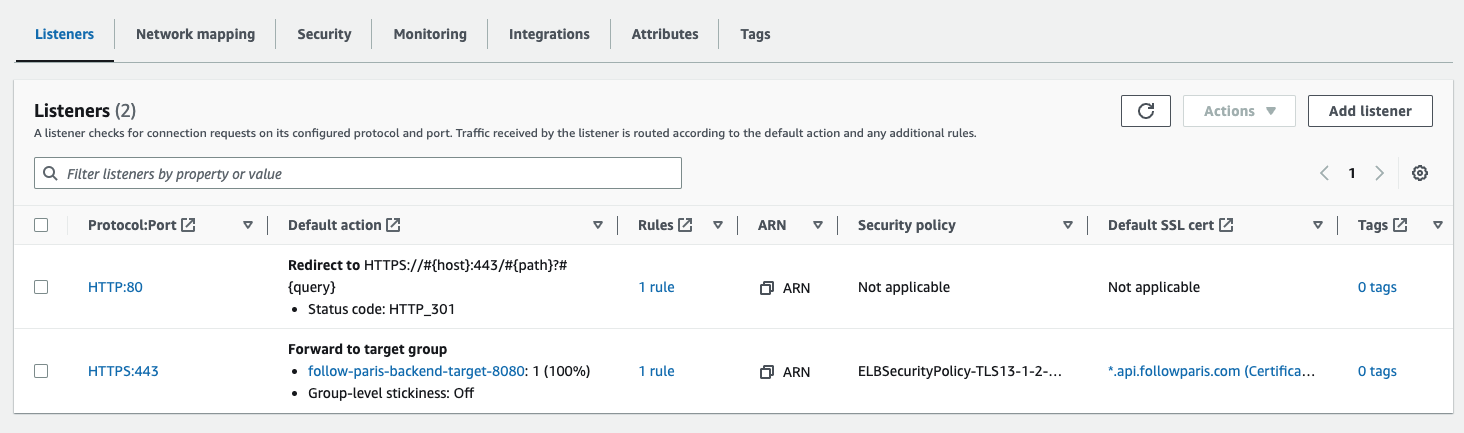

Set redirect from 80 to 443 port

Create Security for ECS Cluster​

name: follow-paris-ecs-backend-cluster-security-group

Create ECS Cluster​

Cluster name: follow-paris-backend-node-js-prod-cluster to-delete-[[screencapture-eu-west-3-console-aws-amazon-ecs-home-2023-06-17-17_49_11.png]]

Create ECS Task (Do codePipline first then go back, deploy settings need ECS task)​

Task name: follow-paris-bakcend-node-js-prod-task Container name: follow-paris-backend-node-js-container

The memory need to be .879 GB to avoid lack of memory issue.

Create ECS Service by ECS Task​

Name: follow-paris-bakcend-node-js-service ![](./img/screencapture-eu-west-3-console-aws-amazon-ecs-home-2023-06-17-18_02_53 1.png)

GitHub + CodePipeline + ECR​

Create Parameter Store in AWS​

Systems Manager

  • My Parameters - Jiean-MacBook-Pro-14-ssh-id_rsa - Jiean-MacBook-Pro-14-ssh-id_rsa-pub

Create CodePipeline​

Step 1 Choose pipeline settings​

Pipeline name: follow-paris-backend-node-js-prod-pipeline Role name: AWSCodePipelineServiceRole-[eu-west-3]-follow-paris-backend-role

Step 2 source stage​

step 3 Add build stage​

Select AWS CodeBuild, Region

Create Build project​

name: follow-paris-backend-node-js-prod-code-build Managed image Amazon Linux 2 - standard - :5.0 Role name: codebuild-role-follow-paris-backend-node-js-prod [x, not sure for this check] Check - Enable this flag if you want to build Docker images or want your builds to get elevated privileges configuration/buildspec.prod.yml

version: 0.2

env:
  # git-credential-helper: yes
  variables:
    git_url: '[email protected]:FollowParis/follow-paris-common.git'
  parameter-store:
    ssh_key: Jiean-MacBook-Pro-14-id_rsa
    ssh_pub: Jiean-MacBook-Pro-14-id_rsa_pub

phases:
  pre_build:
    commands:
      - echo init follow-paris-common submodule...
      - mkdir -p ~/.ssh
      - echo "$ssh_key" > ~/.ssh/id_rsa
      - echo "$ssh_pub" > ~/.ssh/id_rsa.pub
      - chmod 600 ~/.ssh/id_rsa
      - eval "$(ssh-agent -s)"

      - git submodule update --init --recursive

      - echo Logging in to Amazon ECR...
      - aws --version

      - AWS_DEFAULT_REGION=eu-west-3
      - AWS_PASSWORD_STDIN=125894042607.dkr.ecr.eu-west-3.amazonaws.com
      - aws ecr get-login-password --region $AWS_DEFAULT_REGION | docker login --username AWS --password-stdin $AWS_PASSWORD_STDIN

      - REPOSITORY_URI=125894042607.dkr.ecr.eu-west-3.amazonaws.com/follow-paris-backend-node-js

      - COMMIT_HASH=$(echo $CODEBUILD_RESOLVED_SOURCE_VERSION | cut -c 1-7)
      - IMAGE_TAG=${COMMIT_HASH:=latest}
  build:
    commands:
      - echo Build started on `date`
      - echo Building the Docker image...
      - docker build -f Dockerfile-prod -t $REPOSITORY_URI:latest .
      - docker tag $REPOSITORY_URI:latest $REPOSITORY_URI:$IMAGE_TAG
  post_build:
    commands:
      - echo Build completed on `date`
      - echo Pushing the Docker images...
      - echo $REPOSITORY_URI:latest
      - docker push $REPOSITORY_URI:latest
      - echo $REPOSITORY_URI:$IMAGE_TAG
      - docker push $REPOSITORY_URI:$IMAGE_TAG
      - echo Writing image definitions file...
      - printf '[{"name":"follow-paris-backend-node-js-container","imageUri":"%s"}]' $REPOSITORY_URI:$IMAGE_TAG > imagedefinitions.json
artifacts:
  files: imagedefinitions.json

Complete step 3​

Permission setup for build role​

Role name: codebuild-role-follow-paris-backend-node-js-prod Permission name: follow-paris-get-parameters-store

{
	"Version": "2012-10-17",
	"Statement": [
		{
			"Effect": "Allow",
			"Action": ["ssm:GetParameters"],
			"Resource": "arn:aws:ssm:eu-west-3:058264371409:parameter/*"
		}
	]
}

Permission: follow-paris-use-github-connection

{
	"Version": "2012-10-17",
	"Statement": [
		{
			"Sid": "VisualEditor0",
			"Effect": "Allow",
			"Action": [
				"codestar-connections:ListTagsForResource",
				"codestar-connections:UseConnection",
				"codestar-connections:GetConnection",
				"codestar-connections:DeleteConnection",
				"codestar-connections:TagResource",
				"codestar-connections:UntagResource"
			],
			"Resource": "arn:aws:codestar-connections:eu-west-3:058264371409:connection/24b1e19f-b5ea-446b-b30f-fbdd058323df"
		}
	]
}

Permission: AmazonEC2ContainerRegistryFullAccess (AWS managed) for access ECR(Elastic Container Registry)

Step 4 Add deploy stage​

Image definitions file: imagedefinitions.json

Review 4 steps​

Manual workflow​

  • CodePipeline (start)
  • CloudFormation (EC2 instance: 1 → 2)
  • CodePipeline (Done)
  • ECS Service (task number: 1 → 2)
  • CloudFormation (EC2 instance: 1 → 2)
  • ECS Service (task number: 2 → 1)

Addition: Update Database and redis​

AWS RDS - database -create new​

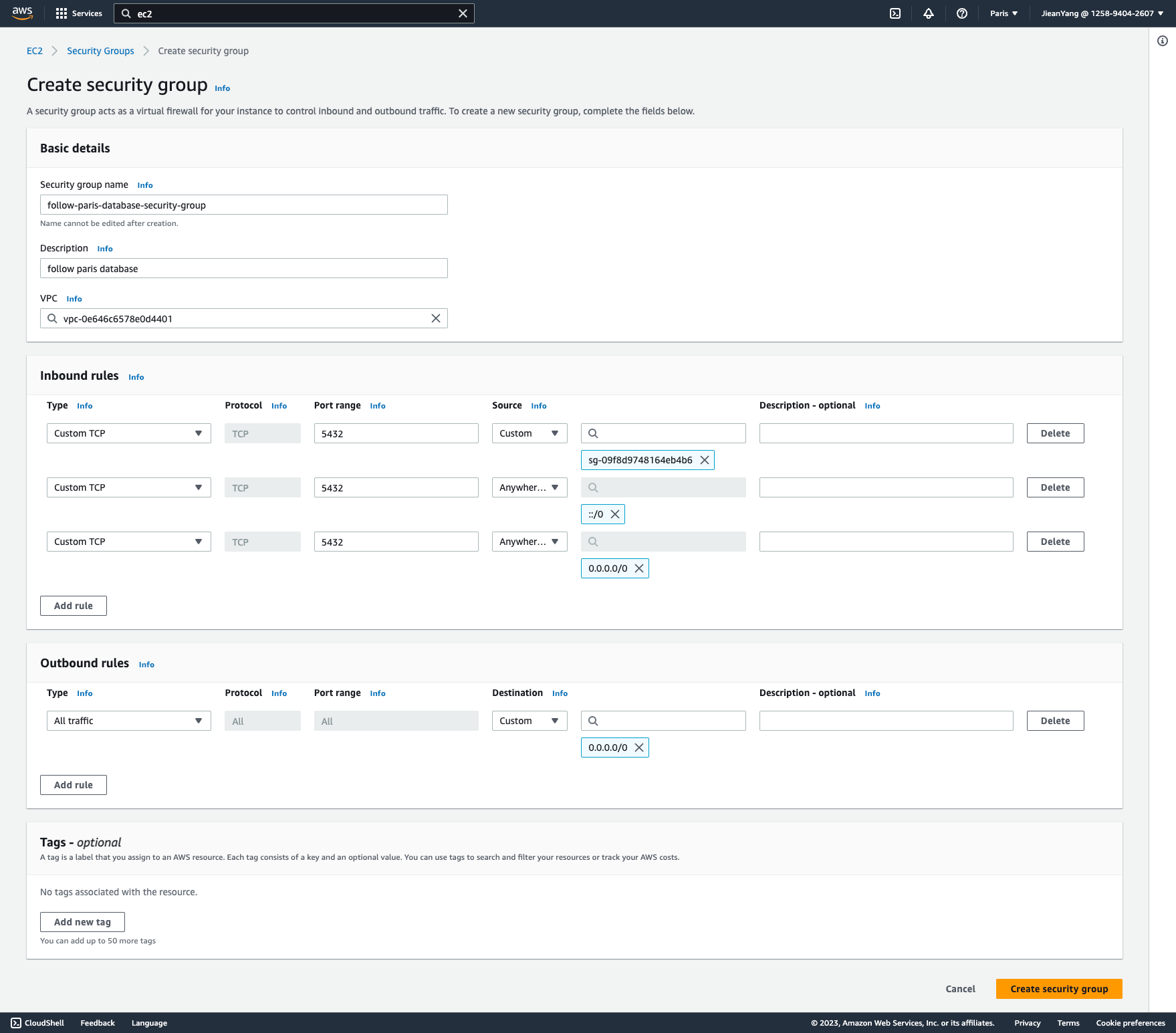

Create security group for database​

name: follow-paris-database-security-group

Create postgreSQL database​

Databse name: follow-paris-prod-v3

AWS RDS - restore database by snapshot​

AWS ElastiCache - redis​

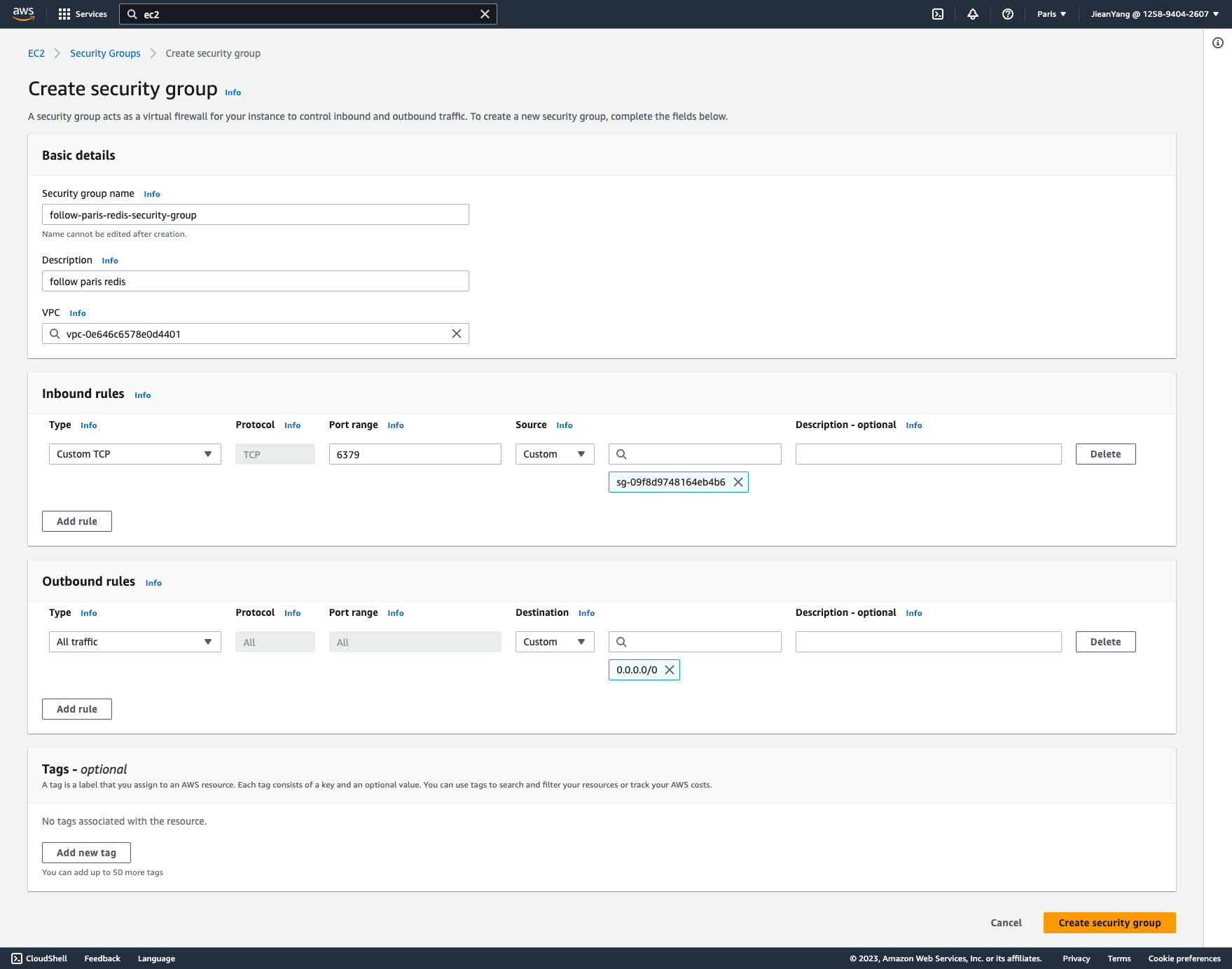

Create security group for database​

Create redis (x)​

name: follow-paris-backend-prod-redis Cluster settings Advanced settings Review
